Temperature Monitoring DMSS Add NVR and Setup Push Notifications

Temperature Monitoring DMSS Add NVR and Setup Push Notifications

by

This guide will show how to add the NVR to the mobile app DMSS and setup Push Notifications for the Thermal Temperature Monitoring Solution

Prerequisites

  • NVR setup and connected to network
  • Latest version of DMSS

Video Instructions

Step by Step Instructions

Update to latest version of the app:

Add NVR to DMSS

1. From the home screen of DMSS press the + in the top right of the screen

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 1.jpg

2. Select SN/Scan to add NVR via P2P

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 2.jpg

3. Allow any camera permissions for the app and use the on screen overlay to scan the QR code found the the P2P menu

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 3.jpg

4. To manually enter the Serial Number, select Manually Enter SN

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 4.jpg

5. Enter the Device Serial Number

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 5.jpg

6. Select Local under Add to

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 6.jpg

7. Select Next

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 7.jpg

8. Select NVR

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 8.jpg

9. Complete the Add Device setup by entering:

Device Name – A name for the NVR in the app Device Password – Password for the NVR

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 9.jpg

10. Select Save

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 10.jpg

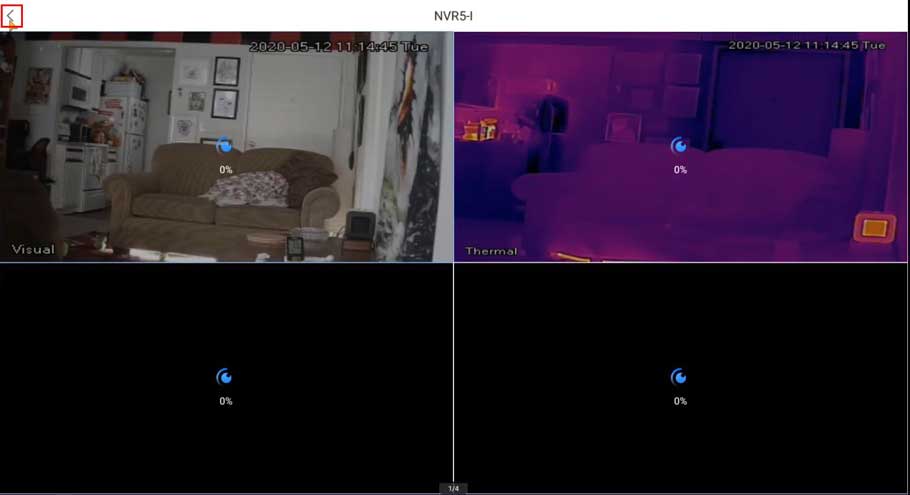

11. The device will automatically connect and bring up Live View

Press the < arrow int he top left of the screen to return to the Home screen

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 11.jpg

The NVR will now appear in the Home screen under added devices

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 12.jpg

Setup Push Notifications

12. Press the … next to the NVR in the list and select Device Details

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 13.jpg

13. Select Alarm Subscription

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 14.jpg

14. Toggle to enable alarm notifications from the NVR

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 15.jpg

15. Select Thermal Alarm

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 16.jpg

16. Select Temperature Not within Thresholds

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 17.jpg

17. Select the Channels of the NVR the Thermal camera is registered as, Visual and Thermal

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 18.jpg

18. Press the < arrow in the top left of the screen

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 19.jpg

19. Select Temperature Alarm

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 20.jpg

20. Select the Channels of the NVR the Thermal camera is registered as, Visual and Therma

Press the < arrow in the top left of the screen

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 21.jpg

21. Press the < arrow in the top left of the screen again to return to the main Device details menu

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 22.jpg

22. Press Save

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 23.jpg

Notifications will be found under the Message section

From the Home screen select Message on the bottom of the screen

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 24.jpg

Select the notifications to review

Dahua Thermal Solution DMSS Add NVR5216 16P I and Setup Push Notification - 25.jpg
