XVR NVR DVR Two Way Talk Setup

Prerequisites

• Dahua device that supports 2 Way Talk
• Microphone connected to Audio Input
• Speaker connected to Audio Output

Video Instructions

Step by Step Instructions

1. From Live View

2. Hover the mouse cursor near the top of the screen until the bar appears

3. Click the Microphone icon to begin Two Way Talk

4. The icon will highlight when Two Way Talk is active

5. Click the icon again to end Two Way Talk

Prerequisites

• Dahua device that supports 2 Way Talk
• Microphone connected to Audio Input
• Speaker connected to Audio Output

Video Instructions

Step by Step Instructions

1. From Live View

2. Hover the mouse cursor near the top of the screen until the bar appears

3. Click the Microphone icon to begin Two Way Talk

4. The icon will highlight when Two Way Talk is active

5. Click the icon again to end Two Way Talk

Prerequisites

• Dahua device that supports 2 Way Talk
• Speaker connected to Audio Output
• PC Audio connected – Headphones and Microphone

•

  Standard Audio ports on PC

•

  Red (Microphone) Green (Speakers/Headset)

•

  Microphone and headset plugged in to PC

Video Instructions

Step by Step Instructions

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

2. Click to load the camera/channel from the Channel list on the left side of the screen

3. Click Start Talk to begin Two Way Talk

4. The button will remain highlighted while active

5. Click End Talk to stop Two Way Talk

Prerequisites

• Dahua device that supports 2 Way Talk
• Speaker connected to Audio Output
• PC Audio connected – Headphones and Microphone

•

  Standard Audio ports on PC

•

  Red (Microphone) Green (Speakers/Headset)

•

  Microphone and headset plugged in to PC

Video Instructions

Step by Step Instructions

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

2. Click to load the camera/channel from the Channel list on the left side of the screen

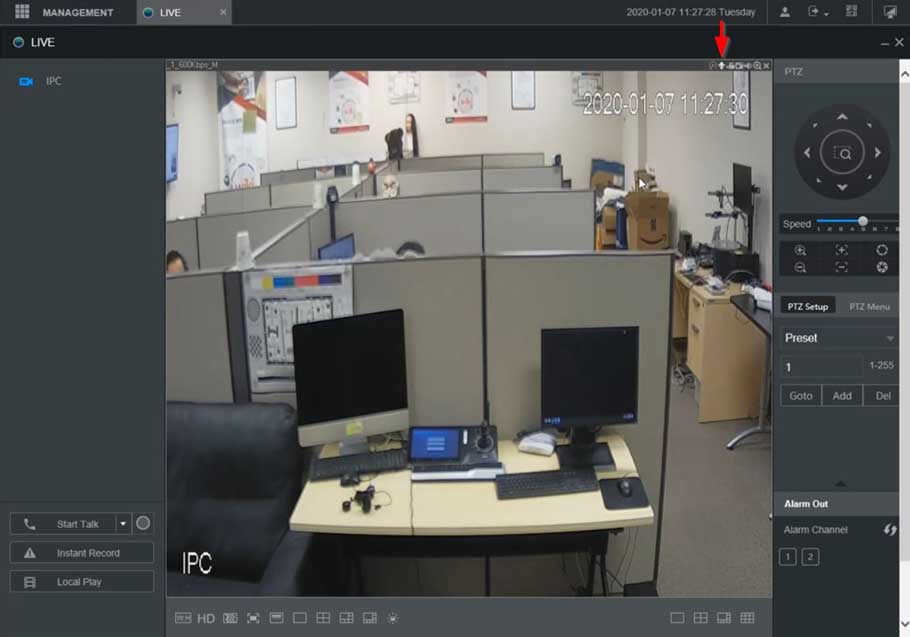

3. On the bar above the channel/camera, click the Audio Talk icon (microphone) to begin Two Way Talk

4. The icon will remain highlighted while Two Way Talk is active

5. Click the icon again to end Two Way Talk

Prerequisites

• Dahua device that supports 2 Way Talk
• SmartPSS
• Device added to SmartPSS
• Speaker connected to Audio Output
• PC Audio connected – Headphones and Microphone

•

  Standard Audio ports on PC

•

  Red (Microphone) Green (Speakers/Headset)

•

  Microphone and headset plugged in to PC

Video Instructions

Step by Step Instructions

1. From the Main Menu of SmartPSS

Click Live View

2. Use the device tree on the left to load the channel/camera by dragging and dropping or double clicking

3. On the bar above the channel/camera, click the Audio Talk icon (microphone) to begin Two Way Talk

4. The icon will remain highlighted while Two Way Talk is active

5. Click the icon again to end Two Way Talk

Prerequisites

• Dahua device that supports 2 Way Talk
• DSS Express
• Device added to DSS Express
• Speaker connected to Audio Output
• PC Audio connected – Headphones and Microphone

•

  Standard Audio ports on PC

•

  Red (Microphone) Green (Speakers/Headset)

•

  Microphone and headset plugged in to PC

Video Instructions

Step by Step Instructions

1.

Description

Prerequisites

Video Instructions

Step by Step Instructions

1. Two Way talk is done through the Live View of the device

From the main screen of the app

Select Live

2. Tap the + icon

3. Select the Device / Channel from the list

4. The device will connect and display Live View

Long press the microphone icon (for approximately 3 seconds)

The Voice Call window will appear

Tap to select which device in the list you wish to begin Two Way Talk with

The device will start to connect

5. Two Way talk has now started.

The microphone icon will remain highlighted while Two Way Talk is in use

6. Tap the icon again to end Two Way Talk
