I. Introduction

Currently AI technology has become the main trend of the intelligent security and safety industry. Milesight keeps attaching importance to it and working on developing various devices with AI technology. Face Detection which can help users instantly obtain people’s faces attributes within the camera view is supported on Milesight NVR. Hence you can filter the relative attributes to select desired targets at ease and apply the IP cameras in more varied scenarios. Generally face detection is only available in Milesight AI models.

Note: Face Detection of none-AI cameras cannot be enabled on Milesight NVR. So please make sure that the suffixes of your camera’s model should include C before enabling Face Detection on NVR. For example MS-C5363-PC, the letter C stands for AI platform.

II. How to enable Face Detection on NVR

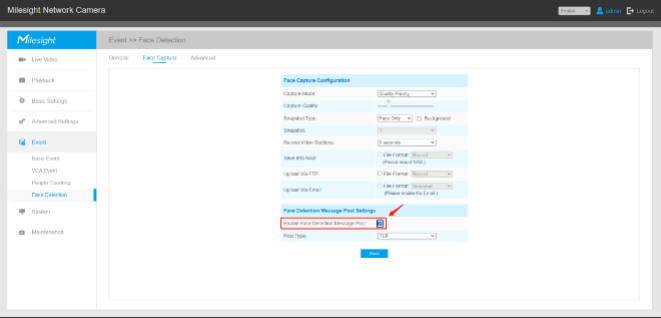

Before enabling Face Detection on NVR, please go to the IP camera web page to enable the Face Detection Message Post.

Note:  Please select TCP as the Post Type.

mxyj93pb7lt6prfkpohkfs1ziqkpvlmlgq 661w318h



The article will describe the detailed operational steps on both Web page and Local in the following. Actually the essential logic is the same, so the operations are interoperable.

.

Target Mode

.

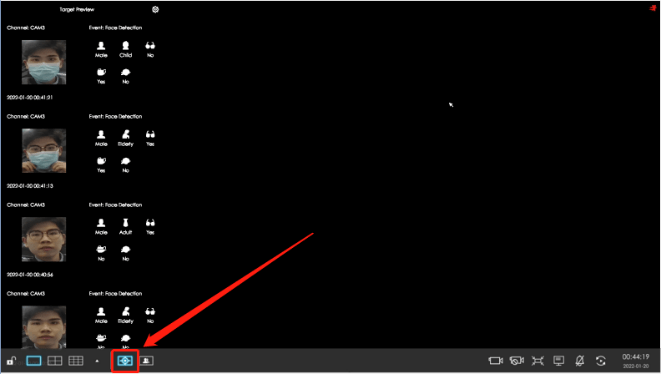

Local has supported Face Detection in Target Mode which can show the face info synchronously with the AI network camera. And the related attributes like gender, age, glasses, mask, cap will be shown on the live view interface.



Note: Currently web page does not support Face captures display in live view.



Click umm kwav8zfjyj7fe43cwvk18oe5bjbblqto enable Target Mode

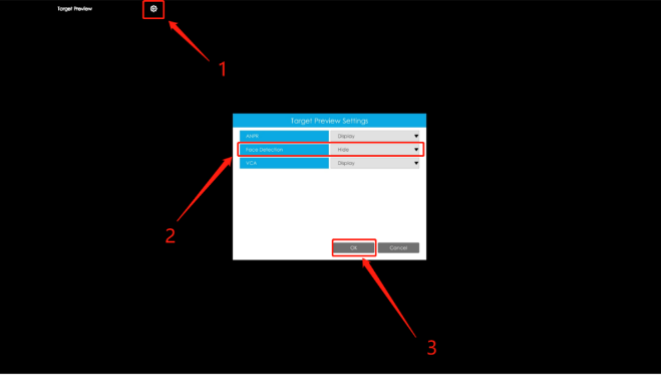

If the face being captured doe not display on the interface, please check the Target Preview Settings.

1) Click

to trigger Target Preview Settings interface.

2) Select Display to show the face capture.

3) Click eanwsy m48swt0ok7izplxq6vdc5 ybotq to save the settings.

m4y7ifckmnykwoo6ulaf48 e2sy0enaf9w 661w375h



Face Detection Settings

Face Capture

Channel Event

1) Select the desired channel of AI camera.

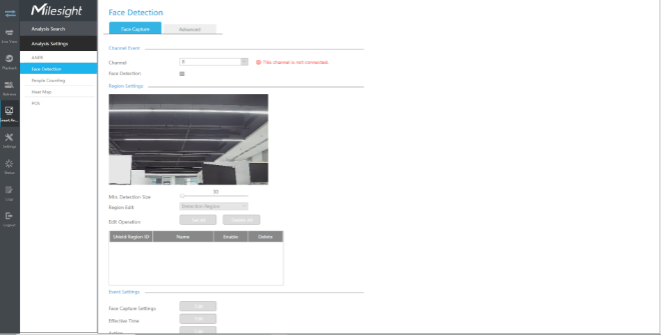

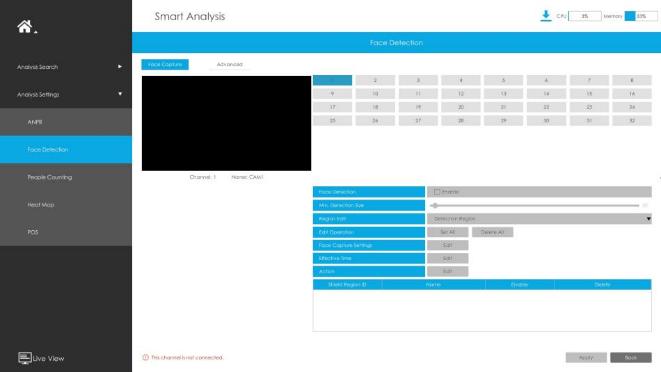

If you choose a channel which does not support Face Detection, it will note that This channel does not support this function.

v 75tosbxgxoupwrvggw04nvgclwhunq5a 661w

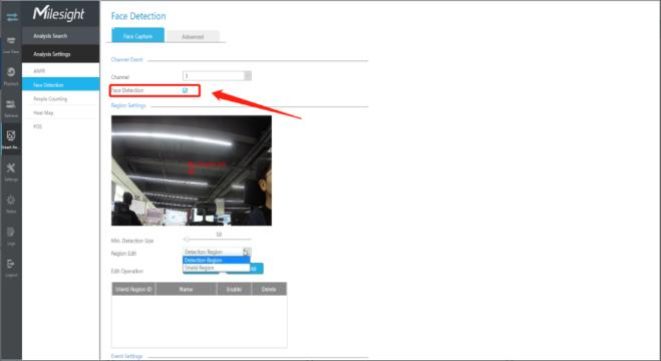

2) Enable Face Detection, then you can configure the corresponding parameters.

k36xeuus8dpznmishq8y wocqfjxbnlj6w 661w361h

xpokrmqaqzkizjfz4lvjhdkixw wdnwahw



Region Settings

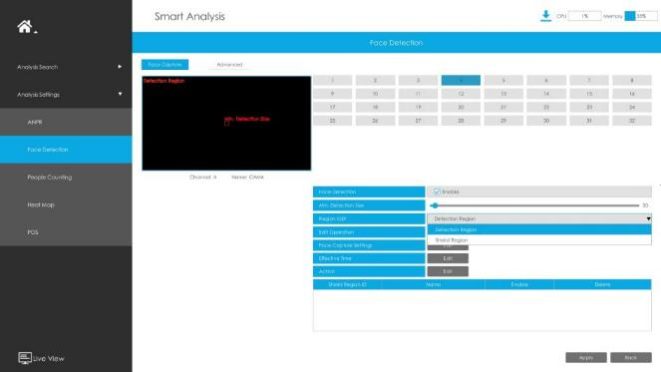

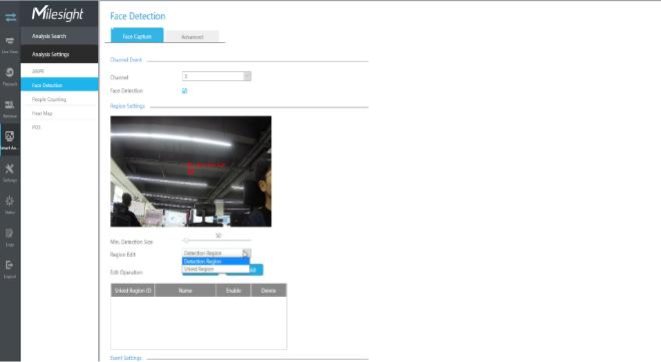

There are two modes for regional edit, Detection Region and Shield Region. The region you draw in each mode plays different parts in Face Detection.

kjsctms8uu b9rujfnyxvwrngitrpj3slg 661w362h

1xcbir ittnbjnosh 5wzdxmie5xu2p2da 661w372h



For Detection Region, it will trigger face detection whenever someone enters the specific region you draw. The face info will be captured instantly and the face being captured could be searched in face detection module of Analysis Search.

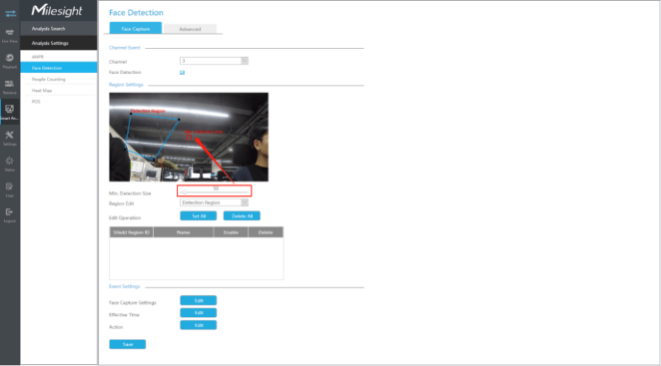

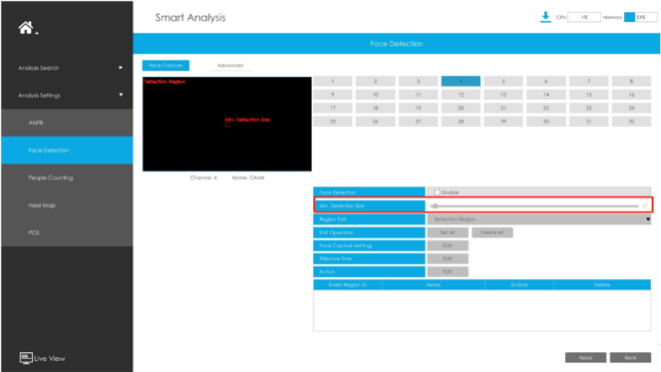

The Min. Detection Size you set will determine what size of the face will be filtered. If the human face is smaller than the Min.Detection you set, it will not be detected.

a7ns8cc0jzlvpzodbt0zfq azgvqsha bw 661w366h

lndjca0 ktrjt8yfka6bujet6egwxaim7q 661w372h

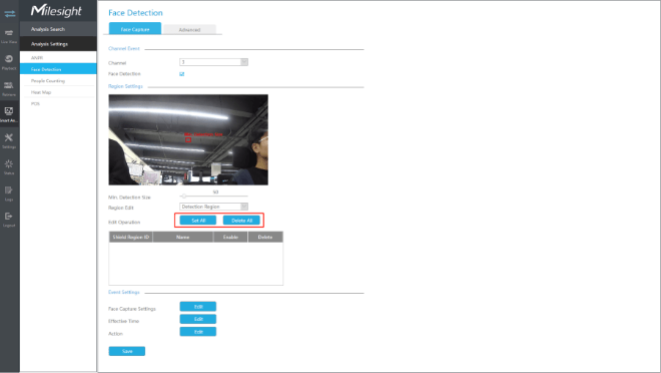

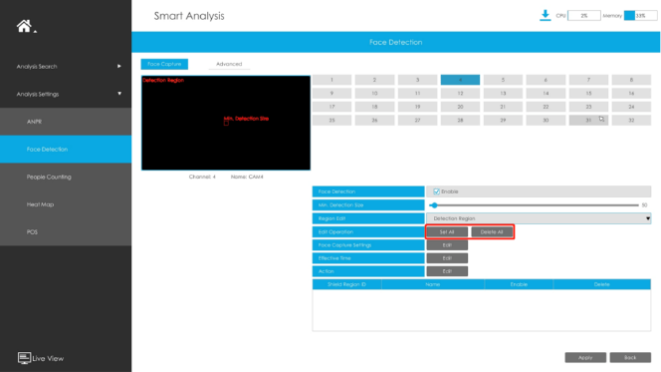

1) Click 8dfnv2any7fbit4zqfv13qjo3bu0kam0egto pick the entire region. Each person entering the range of the camera’s view will be detected. Or you can draw the region manually.

2) Click ohnf tj6ovj6bj9bpwqdrkhrisd0h0q1ww  to clear the region you draw.

uxvjxvnaebi0ito0eddrhl6rt1hhpkqvea 661w373h

zuwdomcfsqgrbuzeiuycvyd mwgnllf9za 661w372h

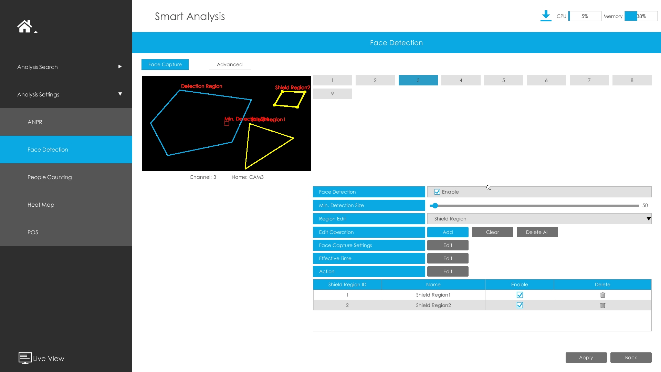

For Shield Detection, click

61ex06hc rqsc

to save after drawing the regions you do not want to be detected.

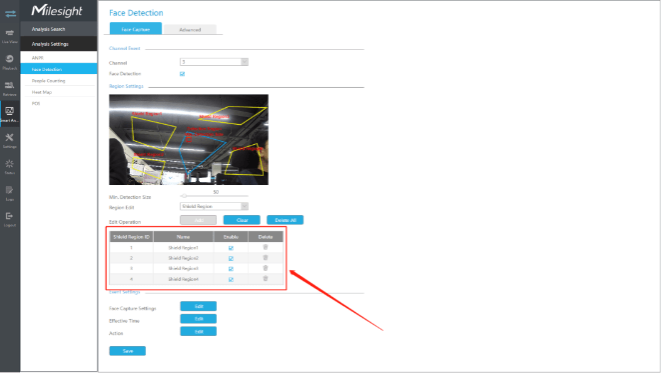

If drawing an unsatisfying region on the screen, click 7hm0ldtnq lozqgt8hyvhyhvnow61 wgjato withdraw the previous regional setting. Click   to one-click clear all the regions you draw. The regions you draw will be tagged in the table correspondingly, and can be managed respectively.

cxsjb9x cngvmimpszfzu1a6tsvxfbxdnq 661w



Note:

1. Only one region is available to set in Detection Region.

2. The limits of Shield Region is 4.

.

Event Settings
Face capture settings

Click

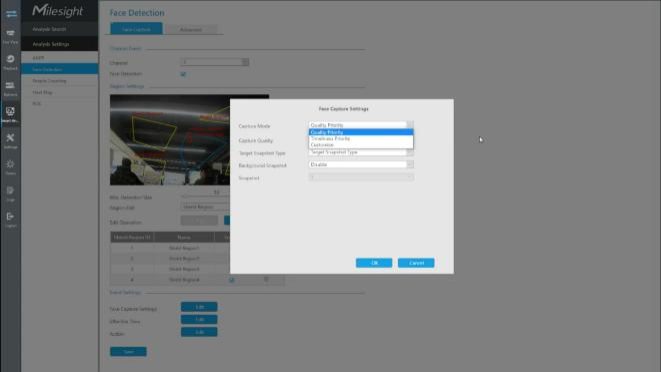

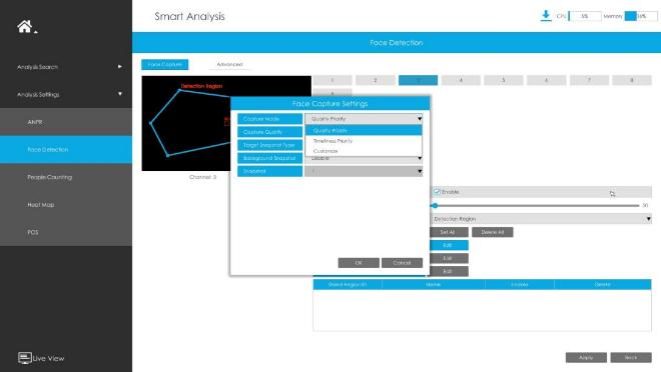

to configure Face Capture parameters. You can select Quality Priority, Timeliness Priority and Customize.

za pcfhkcx9h ppyjoyz3so2wrimk6wujq 372h

lca4oxyxbrmcq6 0nc0pv60w7si3aeafqa 661w

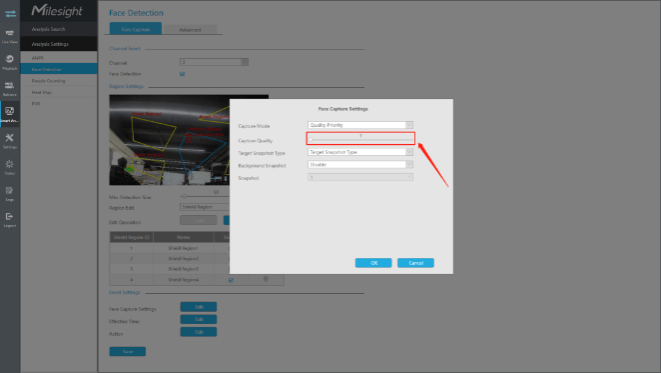

In Quality Priority mode, you can set the capture quality from 1 to 100, and the value will determine the face image quality. Therefore setting a high capture quality can result in missing some unclear captures.

il9tbyhtjltzqehjydtidrs1r7jcdzeedw 661w

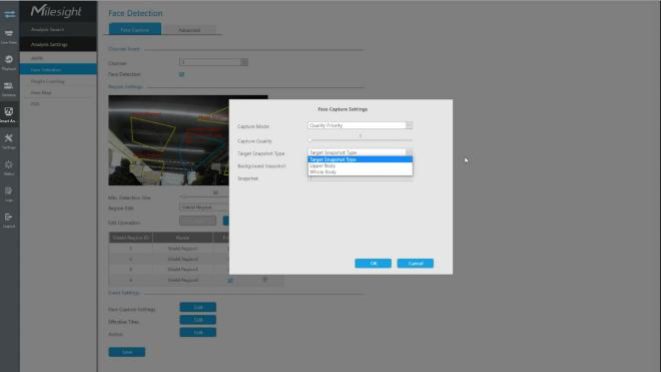

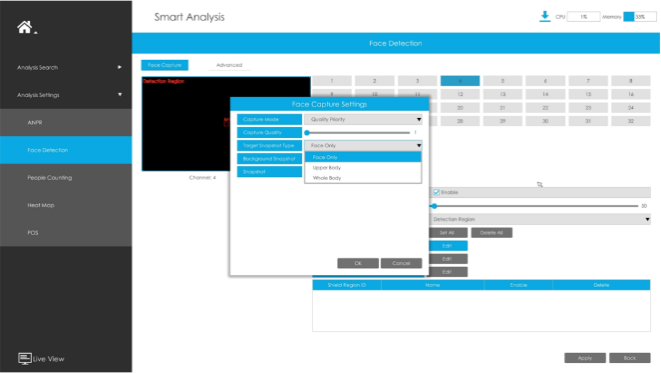

Considering the needs of different users, various target snapshot types can be selected on the Mileage NVR. After setting the snapshot type, you will get the corresponding captures

· Target Snapshot Type

· Upper Body

· Whole Body

ifvolxvvhz3ve x23pxwarcabr14kz0yfg 661w372h

ggh4fpynttgdpdr0mskicx5vhgthvpojna 661w



If you want to obtain the background info at the same time. Select Enable to activate Background Snapshot.

boacz3lju1i3eznurzsxabaz01dheevx3q 661w366h



Note: Only one high-quality snapshot will be generated after the AI algorithm comparison.

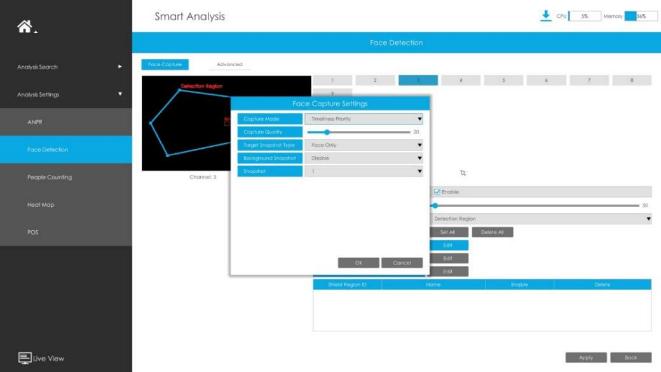

In Timeliness Priority mode, the mechanism is to capture the face info in a more instant way. So you can choose the quantity of the Snapshots.

jifjqssun1mm0a6oqkvkog7jdblzlshnag

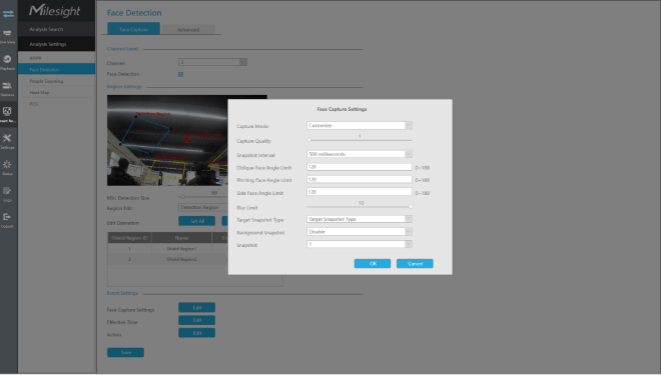

In Customize mode, you can configure the face capture parameters at will. Generally you can customize the face capture from three aspects, Interval, Angle, and Blur.

x4pvscvt28styvamjemefrdtceehjg8bzq 661w

jetcjzvw1728lo9shmg 6hyas2ecbfbo1q

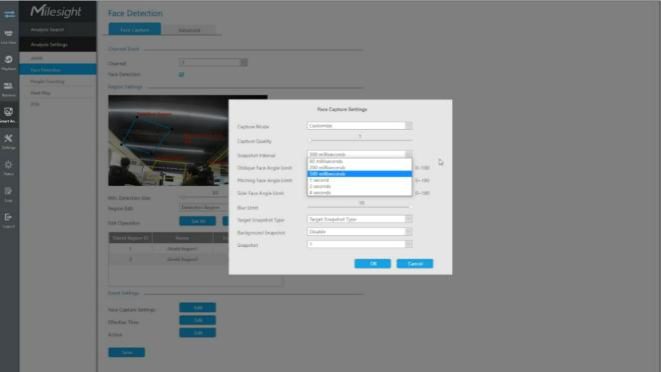

As the picture shows, there are 6 snapshot intervals to select. The lower value you set the more frequently the snapshots will take.

1hd0ac5vqil2u9ostcfnkz2 krzl3ozj5q 661w

9dulyqgdfh00o3oqubpearcmdbaenfrlbq 661w372h

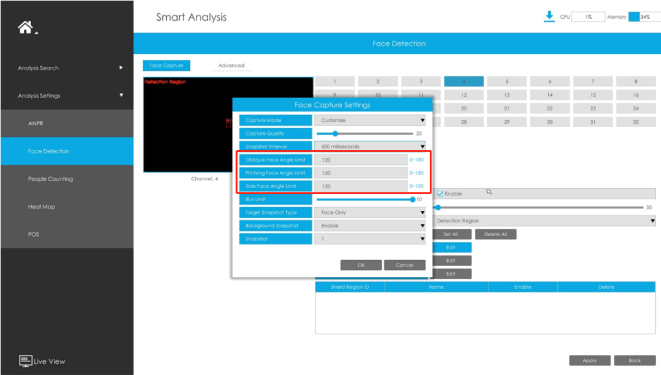

Since the camera captures human face from various angles, adjusting the Oblique Face Angle Limit, Pitching Face Angle Limit and Side Face Angle Limit will greatly help you to gain the high quality snapshots. If any angle of the snapshots is higher than the limit, the AI algorithm will discard it automatically.

gw627 oby9hywqf9uhqwwjfwte6c6 tvaa 374h

u0sxntznbaa7dkd

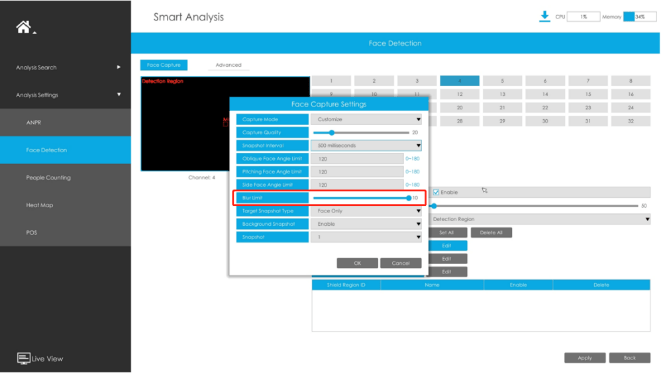

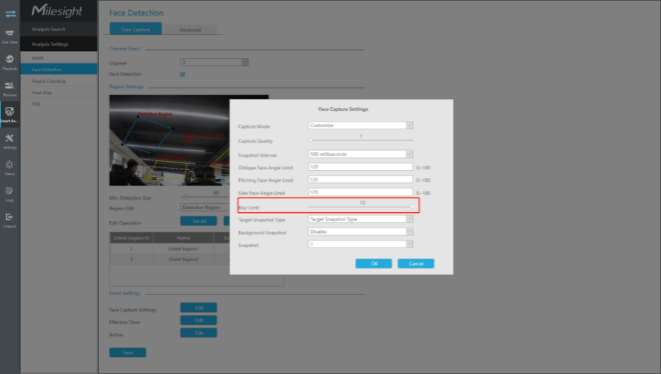

Obviously the image can be affected by some quick motions. So the blur should be taken into high consideration .

If the blur value of the capture is higher than the blur limits you set, it will be filtered. The blur limit is from 1 to 10.

lc09r1pgxm9nmzsobfr771juxf7kbx06 g 661w

e0lt8ahipls9m0qp czmrjuwbsuweea6vq

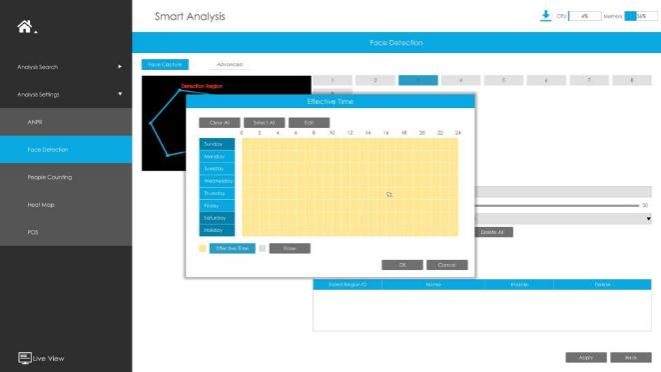

Effect Time

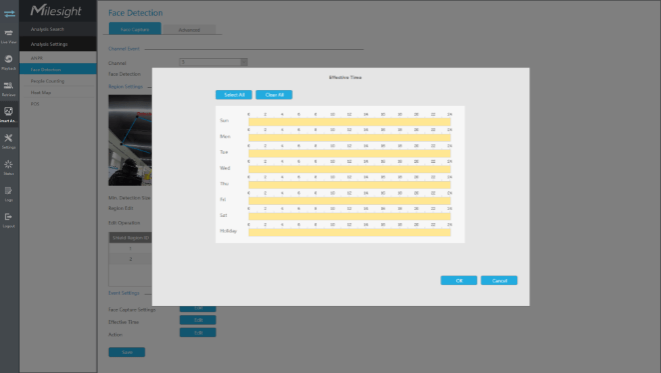

You can set the schedule to make face detection take effect during the corresponding period.

diocmc fa55pptqqrmtvsn6guezg78arog 661w

xh8w aurjc97tsit sfyrhohhxiramib7q 661w

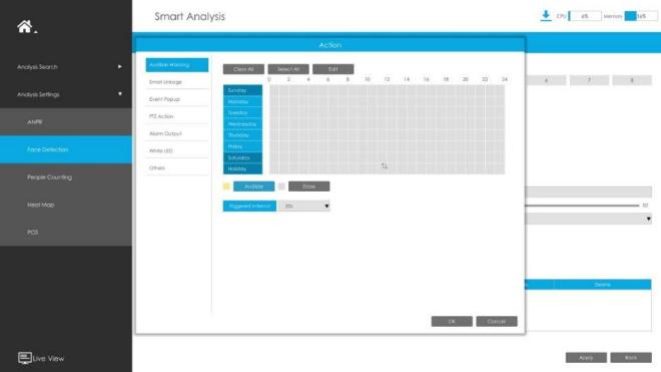

Action

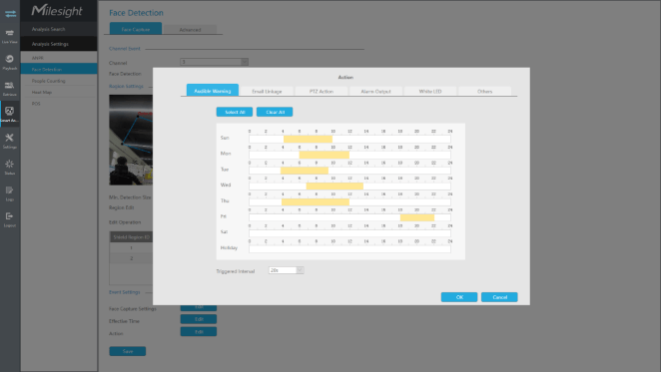

When the face is detected, it will trigger the relative action. And you can select time slots to decide when the setting will function.

8qr3am7odm32mbylqro2ksryhlb04aj1zg 661w372h

0 g0x cczjkhtdlce4fkza6vtbahzhtueq 661w372h



Advanced

Click

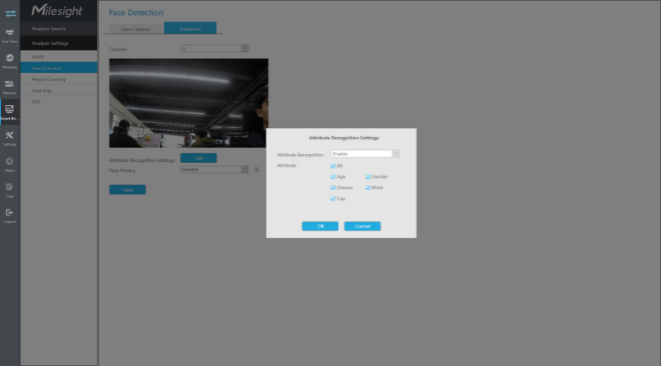

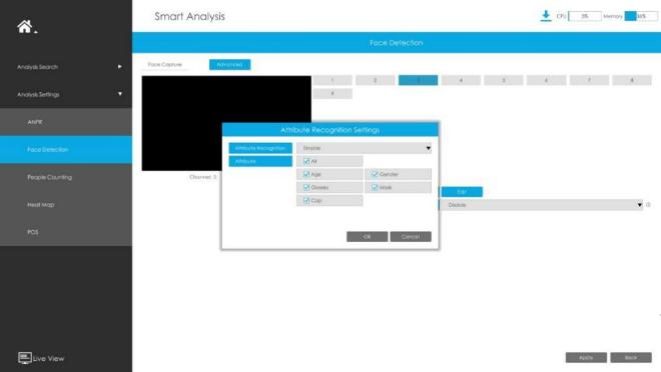

to configure Attribute Recognition parameters. The AI algorithm will judge the face capture by the attributes you set.

ie485t4oufrvr2vzsusd3gphdaskbinama 661w

mcmbidea0zxtzvdowl7dk3hn6r3bn5wwtg 661w

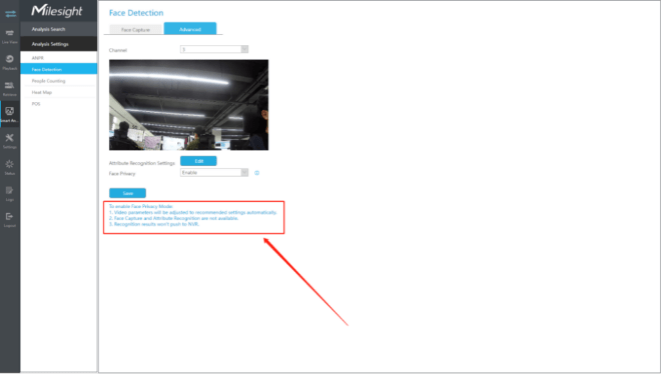

If you enable Face Privacy, please pay attention to the tips as the picture shown.

xlfjqni4 qk0 rv584xtzt1qh9w5gnyefg 661w

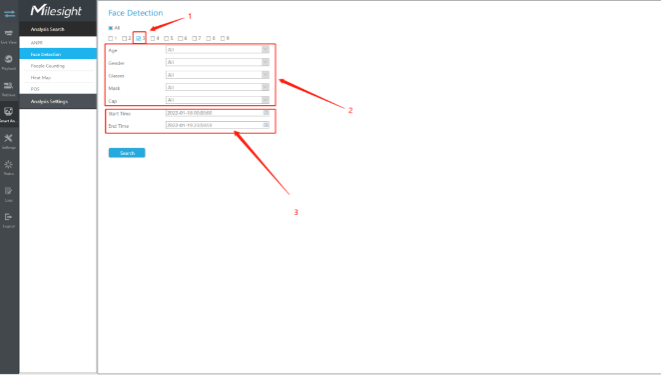

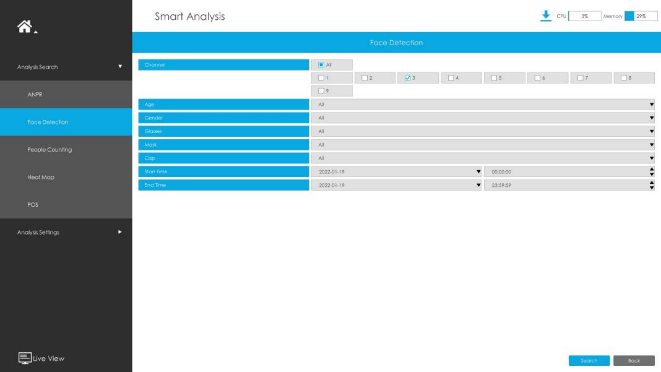

Face Detection Search

(1) Select the desired channel.

(2) Select the filtered attributes.

· Age: Child, Adult, Elderly.

· Gender: Male, Female.

For glasses, mask and cap, you can choose Yes/No to decide the judging tags.

All means the search will display the whole capture records. Also choose N/A to ignore the attributes on the capture.

(3) Select the start time and end time, which can enhance the search efficiency.

ihh1f 7lab tuqbivxfwucs9xfbr1eziiq 661w

d7tqfw1m ico371rt wad16b9nysmqfn w

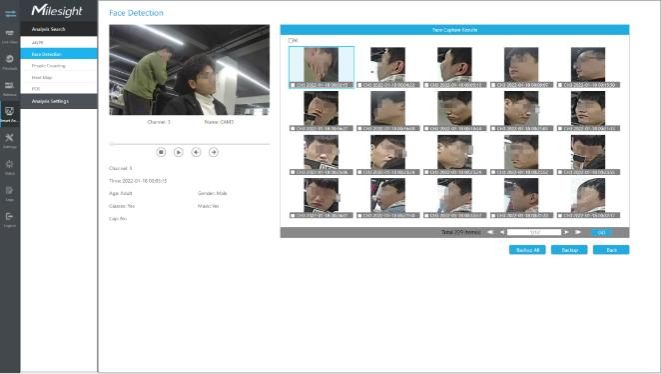

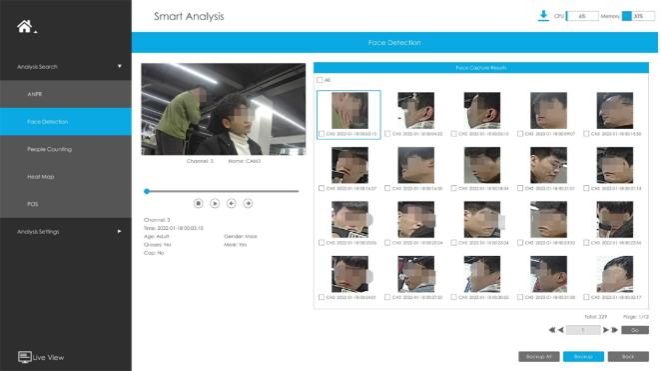

(4) Click

lpz dk1wktfukk27nsgdzprsttymiwduww

to retrieve the face captures.

kugcoz5ex eovvetp9z4gnjxk9egfaw13q 661w

2zoqejbr6zlgo9lpkswlpz815sm9t23hog 661w



(5) Click

to one-click back up all snapshots. Also you can select the desired snapshots then click elulusv95s30etljiob.

dv4eywermftoxjqz5xkub0z5m6 fkxfuyq 661w

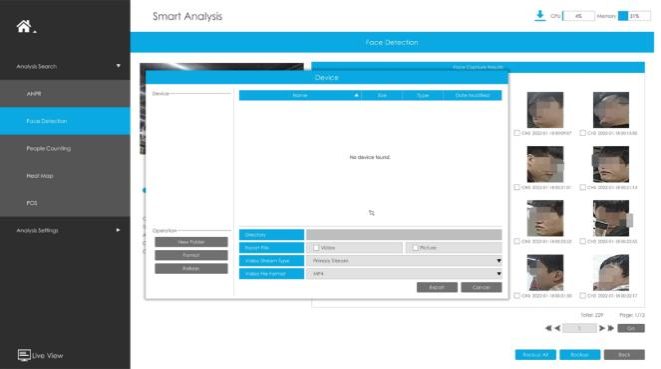

You can choose to export the video or picture.

vmjtspbfntqg1wn tmrkg0sz9exmczpbcw 661w

l5og4 mrwvmwczhg3kmywieoo2p0jnh3rg 661w



Note: It is required to set up the external equipment to export the video and picture on Local.



Moreover, it is supported to select the video stream type so you can export the Primary stream, Secondary stream even Primary + Secondary stream according to your actual storage condition.

6 p2s85cfru7l68o1i16aypx bsrchv1qa 661w

To match more players, the export file supports various formats.

ff0zfgmre6a3p7f3qio6fasq 5iqbkajya 661w



.
