Prerequisites

• Dahua IP camera
• Dahua Network PTZ (with at least 1 preset)
• Dahua NVR or HDCVI DVR (both cameras added)

Video Instructions

Step by Step Instructions

1. From Live View

Right click select Main Menu

2. Under Setting

Click Event

3. Click Video Detection

4. Use the dropdown box to select the Channel the fixed camera is added to

5. Check the box to enable

6. Check the box next to PTZ Activation to enable

7. Click Setting to configure the parameters of the trigger

8. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset

9. Enter the Preset number

10. Click OK

11. Click Apply then OK to save all settings

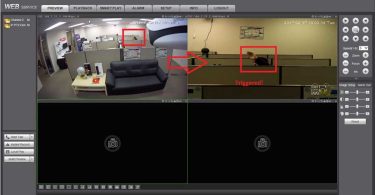

12. When the fixed camera detects motion it will send the PTZ command to the PTZ camera

Prerequisites

• Dahua IP camera
• Dahua Network PTZ (with at least 1 preset)
• Dahua NVR or HDCVI DVR (both cameras added)

Video Instructions

Step by Step Instructions

1. From Live View right click

Select Main Menu

2. Click Alarm

3. Click Video Detection

4. Under Motion Detect

Use the dropdown box to select the Channel

5. Click to toggle and enable the Motion Detection

6. Check the box next to PTZ Activation to enable the function

7. Click Setting to configure the parameters for PTZ Activation

8. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset

9. Enter the Preset number

10. Click OK

11. Click Apply

12. When the fixed camera detects motion it will send the PTZ command to the PTZ camera

Prerequisites

• Dahua IP camera (motion detection capability)
• Dahua NVR or HDCVI DVR (both cameras added)
• Dahua Network PTZ (with at least 1 preset)

Video Instructions

Step by Step Instructions

1. Log into the NVR.

2. Select setup.

3. Select Event -> Video Detection then select the Enable checkbox. Make sure period and region are set up correctly and trigger appropriately. Now check PTZ Activation and then select setup.

4. On the channel with the PTZ select the preset function and then type in the preset and then select OK.

5. Now select OK to Successfully saved! and wait 1 minute.

6. Go ahead and test this solution!

Prerequisites

• Dahua IP camera
• Dahua Network PTZ (with at least 1 preset)
• Dahua NVR or HDCVI DVR (both cameras added)

Video Instructions

Step by Step Instructions

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

2. Click Alarm

3. Click Video Detection

4. Use the dropdown box to select the Channel

5. Check the box to enable

6. Click Setting next to PTZ Activation

7. Check the box to enable the function

8. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset

9. Enter the Preset number

10. Click OK

11. Click OK to save all settings

12. When the fixed camera detects motion it will send the PTZ command to the PTZ camera

Prerequisites

• Dahua IP camera
• Dahua Network PTZ (with at least 1 preset)
• Dahua NVR or HDCVI DVR (both cameras added)
• Dahua recorder with cameras added to SmartPSS

Video Instructions

Step by Step Instructions

1. From the Main Menu

Click Device CFG

2. Left click the recorder in the device list on the left side of the screen

]

3. Click to expand the Event section

]

4. Click Video Detect

]

5. Use the dropdown box to select the Channel

]

6. Check the box to enable

]

7. Check the box next to PTZ Link to enable the function

]

8. Click Set next to PTZ Link

]

9. Use the dropdown box next to the corresponding channel that the PTZ camera is added to and select Preset point

]

10. Enter the Preset number

]

11. Click Save

]

12. Click Save

]

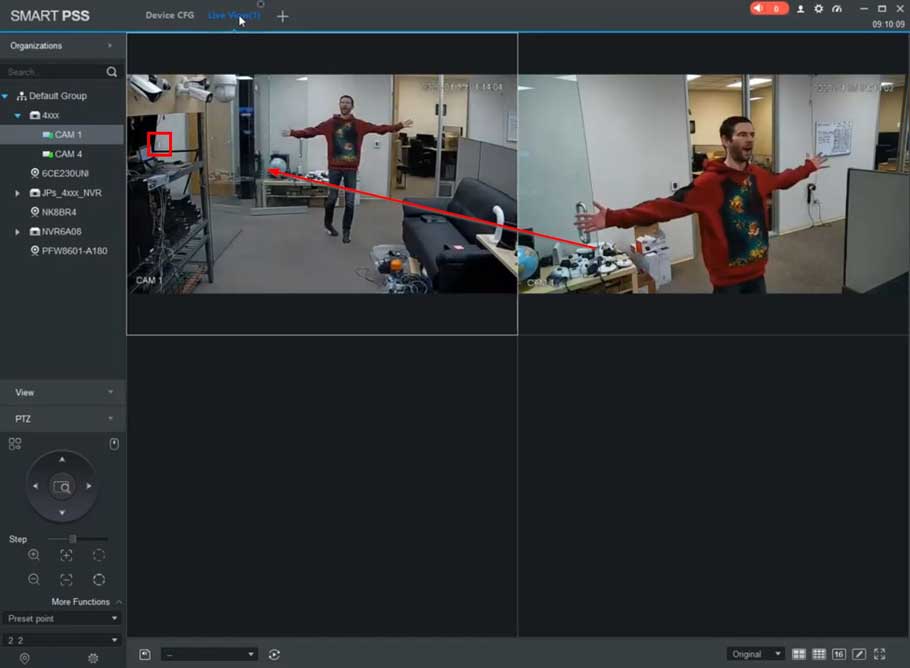

13. When the fixed camera detects motion it will send the PTZ command to the PTZ camera
